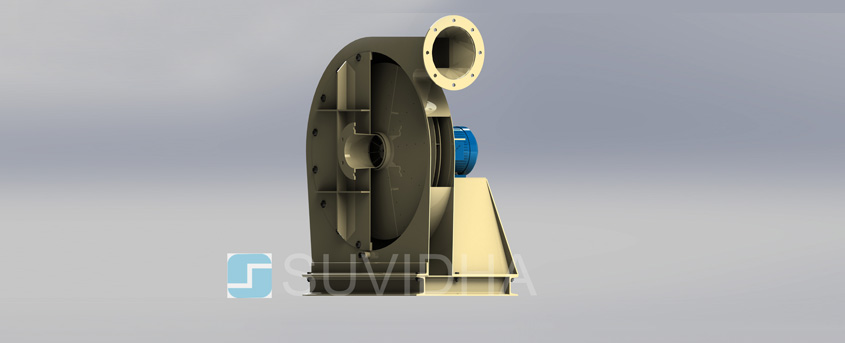

Suvidha Air Engineers has available Pressure Blowers with both Radial and Radial tip wheels. It provides for moderate to high pressures with low to moderate air volumes. These performance ranges are achievable due to the high tip speed capability inherent in these blower designs. Usually used in Direct Driven arrangement, but high temperature fan arrangements are available too.
Celpad Technical Specification :
| Wheel Diameter |
8” to 66” |
| Air Volumes |
Up to 30000 CFM |
| Static Pressure |
Up to 2000 mmWG |
| Horse Power Requirements |
Up to 500 HP |
| Temperatures |
Up to 800 °F |
| Maximum Efficiency |
To 80 % |
Features :
- Precision engineered
- Reliable performance
- Less maintenance
Applications of Pressure Blowers :
- Chemical Processing
- Combustion Air
- Pneumatic Conveying
- High Pressure Air moving Systems through Long Ducts
- Glass Blowing and Cooling Application
Specifications :
- Maximum single stage pressure – 4000 m Gc (multiply by fluid density for pressure in mmwc)
- Maximum single/double stage blower inlet flow rate – 72000 m3/hr
- Maximum double stage pressure – 8200 m Gc (multiply by fluid density for pressure in mmwc)
- Pressure: 1900 mm wc
- Flow Rate: 20000 CMH
- Speed: 2970 rpm
- Application: Pneumatic Conveying

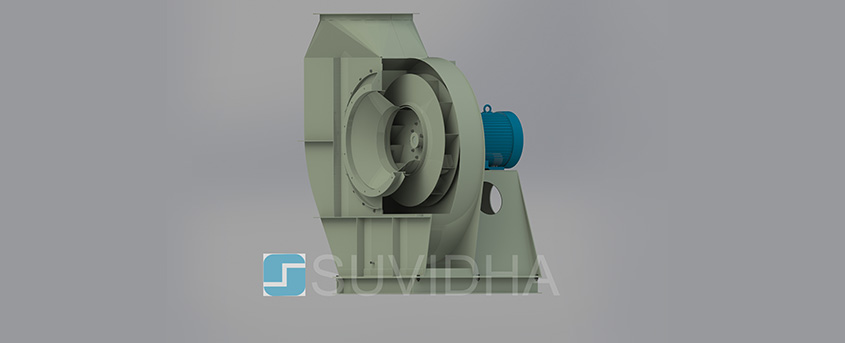

We are counted among the leading manufacturers and suppliers of a wide array of High Pressure Blowers. Developed by a team of deft experts as per the quality standards, these products are widely used in various industries for ventilation purpose. These blowers are renowned for their superior performance and are used widely in various applications in rice mill machinery. Their powerful motors are capable of blowing out more air as compared to other blower substitutes in the market. Standard and customized specifications of these are supplied to clients.
Features :
- Long shavings wheel (LS)
- Wool-fiber wheel (WF)
- Rugged, continuously welded heavy steel plate construction
- Flat Radial Blades handle dirty air and materials without build-up
- Stable performance from shut-off to wide open; operates without pulsation over a range of duties
- Oversize shaft and bearings
- Statically and dynamically balanced
Application :
- Waste water treatment
- Manufacturing of textiles
- Medical and laboratory equipment
- Printing and paper handling
- Vacuum packaging
- Reprographics industry
- Aeration of fluids
- Pneumatic conveying
- Plastic industry
Specifications :
- Maximum CFM: 70,000
- Maximum Static Pressure: 40" wg
- Maximum Temperature: 800°
- Fan Sizes:5 to 33
